DX53D+Z galvanized steel is a highly capable grade of hot-dip galvanized steel from the EN 10346 standard. Also defined as “Drawing Quality,” DX53D offers superior ductility and drawing performance compared to DX52D.
This enhanced capability is guaranteed by stricter controls on its mechanical properties, resulting in greater elongation. It is designed for more demanding drawing applications that require a higher degree of material stretch without failure. The ‘+Z’ suffix ensures robust corrosion protection from its hot-dip zinc coating. DX53D+Z is perfect material when manufacturing components with more intricate shapes, bridging the gap between simple drawing and deep-drawing requirements.
Why Choose Us
1. Consistent Quality – Quality is Our Lifeline
With great majority of raw materials from Baosteel, we ensure full in-house production control. Complete testing of mechanical properties with guaranteed thickness/width tolerance compliance.
2. Export Specialists – We Handle the Complexities
As 10+ years serving major overseas manufacturers, we can professionally handle the requirements of compliance, documentation, and shipping with proven track record.
3. Convenient Resources – As Easy As Local Supply
Flexible orders from small batches to large volumes. Multiple shipping options(LCL, FCL, Bulk Carrier) with dedicated after-sales support and regular customer visits.
4. Low Minimum Order & Sample Availability
We accept small orders starting from 0.5–5 tons and provide samples for evaluation, helping you verify quality before bulk purchasing.
Product Serve
| Grade | DX51D+Z | Certificate | IATF 16949:2016, ISO 45001, ISO 9001, ISO 14001 |
| Standard | GB/T, EN, JIS, ASTM | Technique | Cold Rolled |
| Thickness (mm) | 0.15-6.00 (Required) | Surface | zero, small, regular, large spangle |
| Width (mm) | 10-1500 (Provide slitting service) | MOQ | 0.5 Ton |
| Coil ID (mm) | 508/610 | Delivery Time | 2-4 weeks (Negotiate) |
| Production period | 2-4 weeks (Negotiate) | Package | Standard Package,Deluxe Package, Export Package |
Product Parameters
The chemical compositions and physical properties of each grade are as follows. We Strict compliance with customer requirements for thickness and width tolerances. Our fully in-house production line ensures consistent material stability at all times.
| Grade | C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ti(%) |
|---|---|---|---|---|---|---|
| DX51D+Z | ≤ 0.18 | ≤ 0.5 | ≤ 1.2 | ≤ 0.12 | ≤ 0.045 | ≤ 0.3 |
| DX52D+Z | ≤ 0.12 | ≤ 0.5 | ≤ 0.6 | ≤ 0.1 | ≤ 0.045 | ≤ 0.3 |
| DX53D+Z | ≤ 0.12 | ≤ 0.5 | ≤ 0.6 | ≤ 0.1 | ≤ 0.045 | ≤ 0.3 |
| DX54D+Z | ≤ 0.12 | ≤ 0.5 | ≤ 0.6 | ≤ 0.1 | ≤ 0.045 | ≤ 0.3 |
| DX56D+Z | ≤ 0.12 | ≤ 0.5 | ≤ 0.6 | ≤ 0.1 | ≤ 0.045 | ≤ 0.3 |
| Grade | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation (%) | Hardness (Hv0.5) |
|---|---|---|---|---|
| DX51D | No requirement | 270 – 500 | ≥ 22 | 100-125 |
| DX52D | 140 – 300 | 260 – 420 | ≥ 26 | 105-130 |
| DX53D | 140 – 260 | 260 – 380 | ≥ 30 | 115-140 |
| DX54D | 120 – 220 | 260 – 350 | ≥ 36 | 140-165 |
| DX56D | 120 – 180 | 260 – 330 | ≥ 39 | 140-165 |
Our engineering team is available to assist with your unique project needs. Feel free to contact us to discuss your application, and we will gladly provide material suggestions and arrange for samples.
And all our product can be supplied as large spangle, regular spangle, small spangle, zero spangle.
Grade Equivalent Chart
| GB/T 2518 | EN 10346 | JIS G3302 | ASTM A653M |
|---|---|---|---|
| DX53D+Z | DX53D+Z | SGCD2 | FS TypeB |
DX53D+Z Steel (Zero Spangle)
DX53D+Z Steel (Large Spangle)

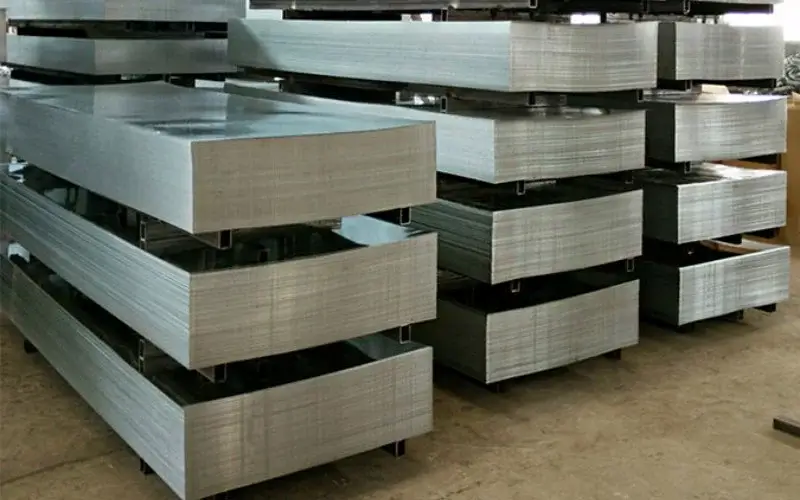

DX53D+Z Steel Sheet in Storage
Based on its superior formability and drawing capability, reliable corrosion resistance, and good cost-effectiveness, DX53D+Z is widely used in the following applications:
- Home Appliances: Washing machine front panels, appliance top covers, simple stamped inner components.
- Automotive Components: Less critical internal structural parts, stamped brackets, various covers and casings.
- Complex Profiles & Hardware: Equipment housings with drawn corners, stamped metal fixtures, complex architectural profiles.
If you have requirements for your product’s performance, but are not sure about the most suitable grade, or want to know more information about a specific grade, please do not hesitate to contact us.
Factory certificates
Our factory fully certified under IATF 16949, ISO 9001, ISO 14001, and ISO 45001 standards.
Performance Test
For each exported batch of galvanized steel, we measure thickness and width to confirm they meet your specifications. Upon request, we can also provide metallographic examination, tensile & elongation test and hardness testing.
Trust by foreign customers
With over 10 years of export experience, we have delivered thousands of tons to customers in more than 20 countries and earned widespread acclaim.
