ASTM1566 is a spring steel used for various flat and round springs, cushion springs, spring springs, etc. in small sizes. The grade corresponding to China is 65Mn.
Manganese in 65Mn improves hardenability, φ12mm steel can be hardened in oil, the surface decarburization tendency is smaller than silicon steel, and the comprehensive mechanical properties after heat treatment are better than carbon steel, but it has overheating sensitivity and temper brittleness.
65Mn 1566 spring steel plate is used for various flat and round springs, cushion springs, and spring springs of small sizes, and can also be used to make spring rings, valve springs, clutch reeds, brake springs, and cold-drawn steel wire cold-rolled coil springs.
65Mn material is equivalent to ASTM 1566 material, is a kind of high carbon steel.
The chemical composition (%) of 65Mn / 1566
|
Standard |
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Cu |
|
|
|
|
≤ |
|||||||
|
GB/T 1222-2016 |
65Mn |
0.62~0.70 |
0.17~0.37 |
0.9~1.2 |
0.030 |
0.030 |
0.25 |
0.35 |
– |
0.25 |
|
ASTM A29-2015 |
1566 |
0.60~0.71 |
– |
0.85~1.15 |
0.040 |
0.050 |
– |
– |
– |
– |
|
Standards |
ASTM JIS AISI GB DIN |
|
Type |
Sheet/Plate |
|
Thickness(mm) |
0.3-3.0mm |
|
Width(mm) |
1000/1219/1250/1500mm (customized) |
|
Grade |
65Mn / 1566 / S65C |
|
C content (%) |
0.62-0.71 |
|
Processing Service |
Slitting, Cutting, Punching, customized service |
65Mn 1566 spring steel plate in production
65Mn 1566 spring steel plate in slitting details

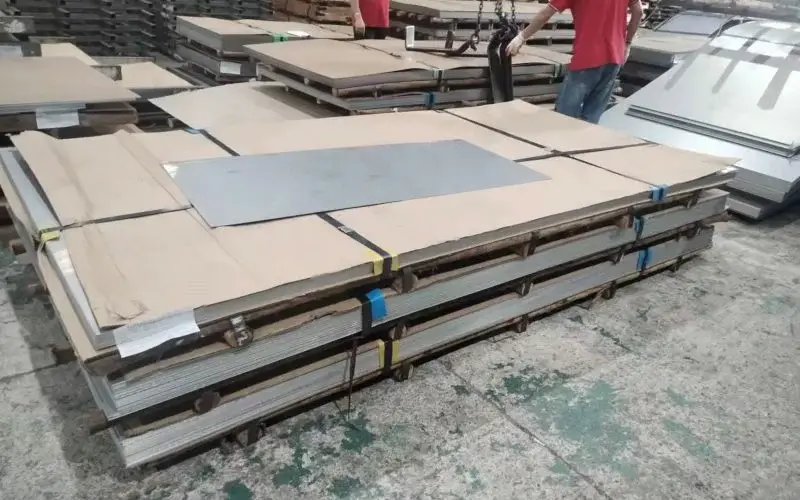

65Mn 1566 spring steel plate in storage.
We are originated from Korean steel company and have advanced production equipment for steel production.
Sufficient inventory of 65Mn 1566 spring steel plate can meet customers’ mass production, and we also have more grades such as SK3-SK105-T11 / SK4-SK95-T10 /SK5-SK85 /60#-S60C-1059 /65#-S65C-1065-1064/ SKS51 / 75#-1074-1075 / 1095etc.
If you cannot find the grades/models you want on above,
please feel free to contact us via CONTACT@WEIZHANMETAL.COM.
We will provide you with the free samples for free according to your needs.
PRODUCTION PROCESS for 65Mn 1566 spring steel plate :
- Incoming inspection —> 2. Feeding —> 3. Welding —> 4. Annealing —> 5. Coating drying —> 6. Packaging
The Delivery time is about 5-7 days if the cargo is rich in stock.
And the production period is about 21-35days.
